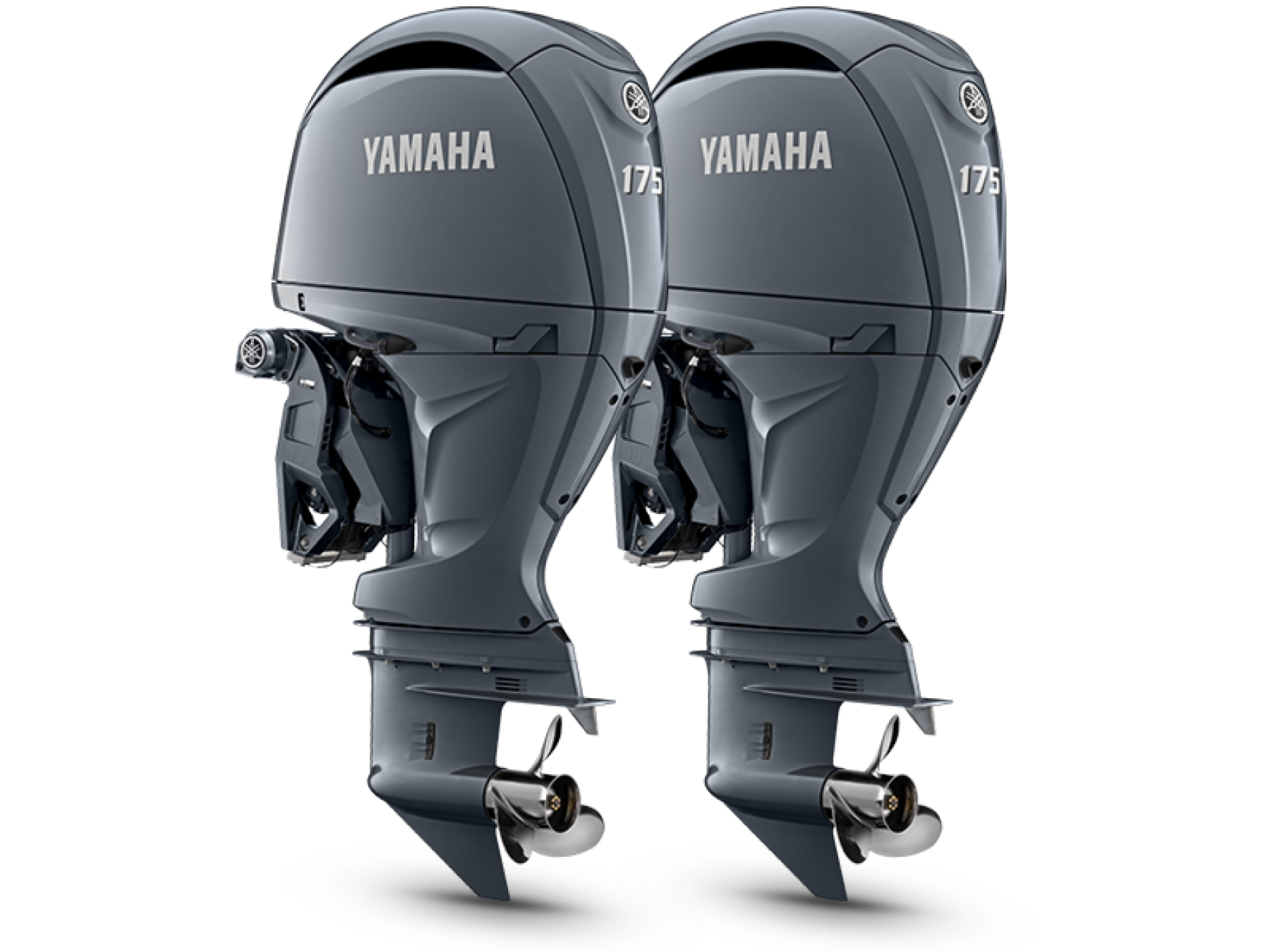

F175
Yamaha’s popular and proven range of F175 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.
The Integrated Hydraulic Steering system is housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.
This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.
The modernised F175 outboards bring a new level of delight to boating.
MODELS | F175CB | F175B |
---|---|---|
Control System | Digital Electronic Control (DEC) | Mechanical Control (MEC) |
Steering System | Integrated Hydraulic Steering (IHS) | Integrated Hydraulic Steering (IHS) |
Transom Height (Shaft Length) mm [inch] | X: 642 [25.3] | L: 516 [20.4] | X: 642 [25.3] |
![](/img/asset/YXNzZXRzL291dGJvYXJkcy8yMDcyLnBuZw==/2072.png?p=3xl&s=28e2ffdf7a31a4666c745ee5c460eb4a)
Specifications
Engine Type | 4-Stroke, 16 Valve DOHC Direct Action In-Line 4 |
Displacement (cc) | 2785.0 |
Bore x Stroke | 96 x 96.2 |
Recommended Max PRM | 5000-6000 |
Lubrication System | Wet-sump |
Fuel Management | EFI |
Ignition | TCI |
Starter System | Electric |
Alternator Output | 12V - 50A with rectifier regulator |
Operation Method | F175CB: DEC/IHS | F175B: MEC/IHS |
Tilt and Trim Method | F175CB: TotalTilt™ with Limiter | F175B: Tilt Limiter |
Digital Guages | |
Digital Network Guages with Fuel Management | Optional |
Gear Ratio | 1.86 : 1 |
OEDA Emission Rating | 3 |
Height | (L): 516 [20.4] (X): 642 [25.3] |
Weight | F175XCB: 235 | F175LB: 233 | F175XB: 234 |
